• Country
• Hong Kong

• Manufacturer / Brand
• Kenton; Hong Kong

• Year
• 1969 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 219974

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA201 2SA202 2SA203 2SB186 2SB187 2SB187 TG48

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Radio Time - Kenton; Hong Kong

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 170 x 45 x 100 mm / 6.7 x 1.8 x 3.9 inch

• Notes

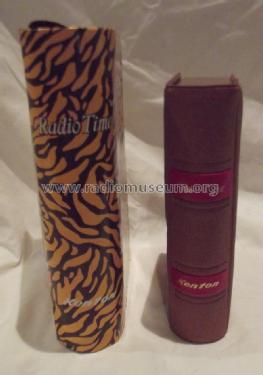

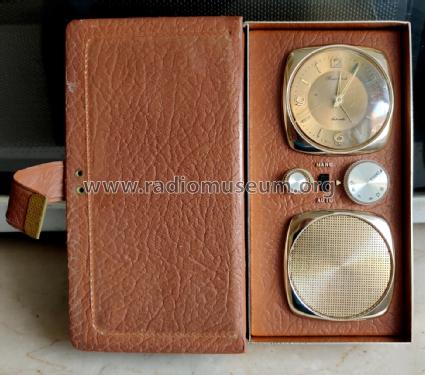

• Travel clock radio in the shape of a book.

• Net weight (2.2 lb = 1 kg)
• 0.420 kg / 0 lb 14.8 oz (0.925 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
