• Country
• Hong Kong

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Hong Kong (HK)

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124683

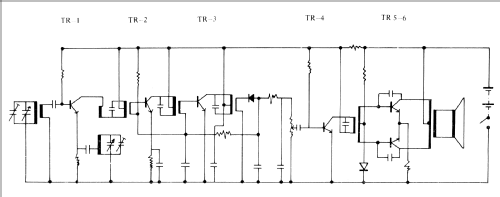

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Lufthansa Boeing 747 - Unknown - CUSTOM BUILT: Hong

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 330 x 340 x 100 mm / 13 x 13.4 x 3.9 inch

• Notes
• + 2 Diode. Gross weight incl full packing 0.600 kg.g

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
