Mandarin 6 Transistor
Unknown to us - Worldwide
- Country
- Worldwide
- Manufacturer / Brand
- Unknown to us - Worldwide
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339887
Back, with no info about "made in"
on/off-volume and tune wheels
Tuning dial

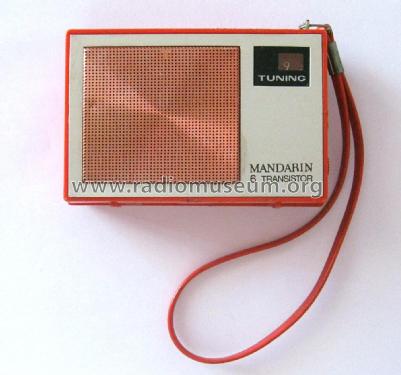

Front detail
Small ring detail
It is a 9V radio, using a common PP3 battery
Two original BJT
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Mandarin 6 Transistor - Unknown to us - Worldwide
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 93 x 62 x 32 mm / 3.7 x 2.4 x 1.3 inch
- Net weight (2.2 lb = 1 kg)
- 0.158 kg / 0 lb 5.6 oz (0.348 lb)
- Author
- Model page created by Davide Tambuchi. See "Data change" for further contributors.
