Wall Radio PR-200M

• Country
• Germany

• Manufacturer / Brand
• Maximal (Marke? / brand?)

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80359

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Wall Radio PR-200M - Maximal Marke? / brand?

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 430 x 350 x 50 mm / 16.9 x 13.8 x 2 inch

• Notes

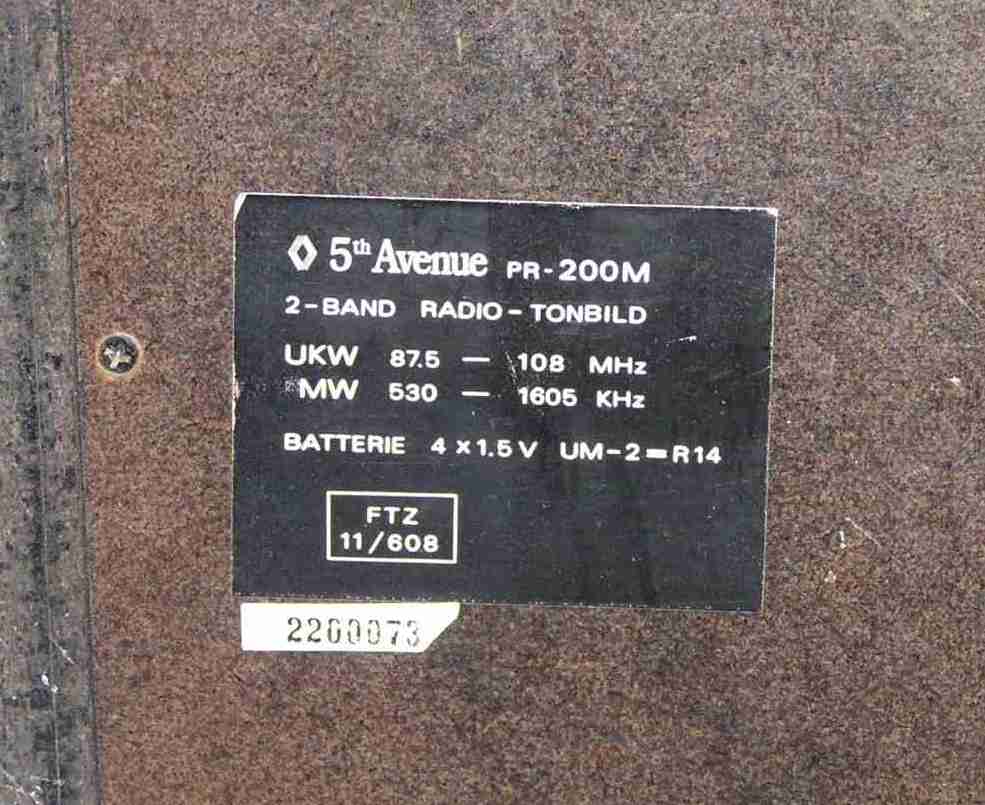

• Wall Radio, gemäss rückseitigem Aufkleber "2-Band Radio-Tonbild".
  Klangschalter für Hoch/Tief, 5-stufige LED-Anzeige: 1 mal grün für ON, 4 mal rot für Lautstärkepegel.

  Siehe auch identisches Modell Tatung AC Delco PR-200M.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Author
• Model page created by Rudolf HEINZ. See "Data change" for further contributors.
