Meisterton 1802
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 353104
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 1 AM circuit(s) 1 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Dry Batteries / C: 6 x 1.5; C: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Meisterton 1802 - Unknown - CUSTOM BUILT: Japan
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 255 x 202 x 120 mm / 10 x 8 x 4.7 inch
- Notes
-
Meisterton Model 1802 AM/FM portable 2-band radio record player.

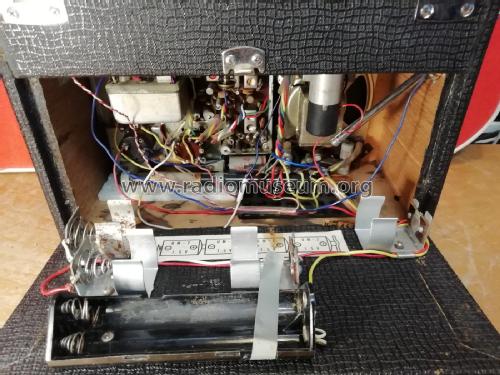

Powered by 2 separate 9 volt (C: 6 x 1.5) supplies. One for the radio and one for the record player motor.
See also other Meisterton Models Meisterton 9 Transistor High Fidelity FM-AM FA-100 and Meisterton FM/AM 9 Transistor 1964.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Author
- Model page created by a member from NL. See "Data change" for further contributors.
