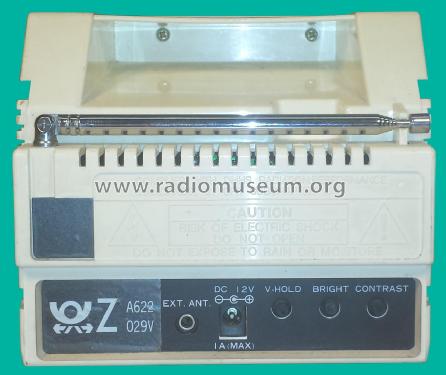

Minivision 100T MV-100T
Unknown - CUSTOM BUILT: China
- Country
- People's Republic of China
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: China
- Year
- 1984 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 264110
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit. / DC 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Minivision 100T MV-100T - Unknown - CUSTOM BUILT: China
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 143 x 126 x 168 mm / 5.6 x 5 x 6.6 inch
- Notes
-
Für Stromlaufplan siehe: Swing Calypso TVP-2770.
Siehe auch Minivision 100.
- Author
- Model page created by Daniel Burkei. See "Data change" for further contributors.
