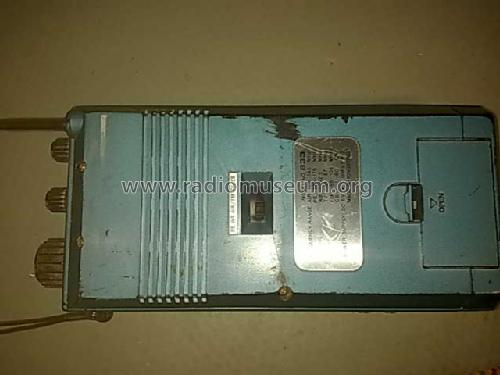

Nikjan 833 CB

Unknown - CUSTOM BUILT: Hong Kong (HK)

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 132498

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Nikjan 833 CB - Unknown - CUSTOM BUILT: Hong
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 96 x 205 x 53 mm / 3.8 x 8.1 x 2.1 inch
  • Notes

  • Nikjan 833 CB Multiband Radio;
    6 Band Empfänger, 64 - 176 MHz + 40 CB Kanäle (laut Skala 80 CB-Kanäle)

    • Empfangsbereiche:
      • CB: 26,9 - 27,4 MHz
      • TV1: 54 - 88 MHz
      • FM: 88 - 108 MHz
      • Air: 108 - 140 MHz
      • WB: 140 - 174 MHz
    • Teleskopantenne
    • 13 Dioden, 1 IC
    • Ohrhörerbuchse
    • Netzteilanschluß.

    Deutschland Import durch Albrecht Electronic.
    Auch als "Pan International Combicontrol III" am Markt.

  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Price in first year of sale
  • 69.00 DM
  • Mentioned in
  • Funkschau (1/1983 Seite 23,96 & 112 Werbeschaltung)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
