Orizon TV Color TCUE-3C-51A

• Country
• Soviet Union

• Manufacturer / Brand
• Orizon, Radio Device Factory; Smila

• Year
• 1992 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 320999

• Picture

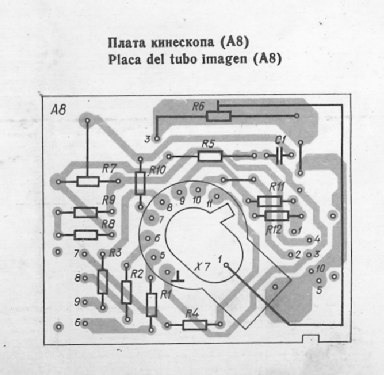

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 51ЛК2Ц

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

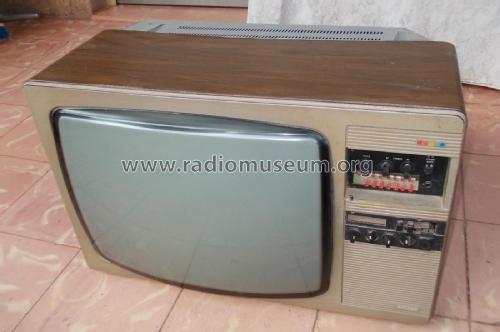

• Model: Orizon TV Color TCUE-3C-51A - Orizon, Radio Device Factory;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 630 x 510 mm / 17.7 x 24.8 x 20.1 inch

• Notes

• Este TV de 20" posee 8 selectores de canales independientes programables, en cada uno de los cuales se puede programar el canal de VHF o UHF que se desee.

  Altavoz elíptico de 6" x 4"

  Export version of Оризон 51ТЦ-508Д , mainly for Cuba, in tropical design.

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Price in first year of sale
• 600.00 CUP

• Author
• Model page created by Miguel Lopez. See "Data change" for further contributors.
