• Country
• Soviet Union

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Soviet Union

• Year
• 1984 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 312637

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 6ЛО1И

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50Hz; 230 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope OML-2M - Unknown - CUSTOM BUILT: Soviet

• Notes

• Probably similar to model OML-3M.

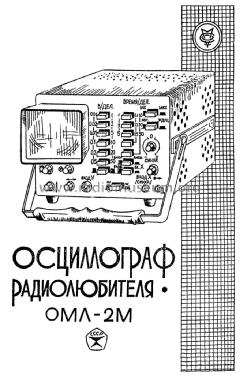

OML-2M Oscilloscope Manual

4936 KB

• Documents regarding this model

• Author
• Model page created by David Erali. See "Data change" for further contributors.
