Passport - Solid State 8 Band Multi Wave FM-1800 Japan 707

Unknown - CUSTOM BUILT: Japan

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 266690

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 120 / D: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.4 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Passport - Solid State 8 Band Multi Wave FM-1800 Japan 707 - Unknown - CUSTOM BUILT: Japan
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

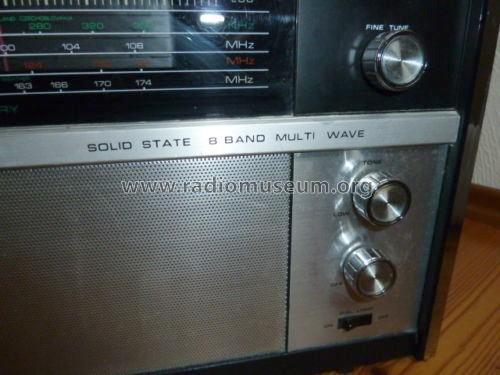

  • Passport - Solid State 8 Band Multi Wave

    LW = 150 - 350 kHz
    AM (MW) = 540 - 1600 kHz
    MB (Marine Band) = 1,6 - 3,8 MHz
    SW1 = 4 - 9 MHz
    SW2 = 8 - 22 MHz
    FM = 88 - 108 MHz
    Air = 108 - 134 MHz
    Police = 148 - 174 MHz

    Mains: 5 W power consumption.

    Made in Japan 707

    See also the similar model Rexton - Solid State 8 Band Multi Wave FM-1800

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
