• Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 347758

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / AA: 2 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

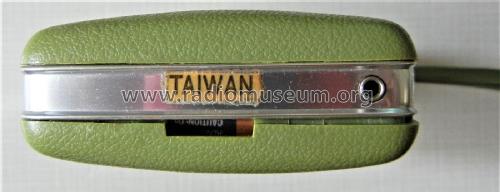

  • Model: Play Mate - Unknown - CUSTOM BUILT: Taiwan
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 25 x 80 x 70 mm / 1 x 3.1 x 2.8 inch
  • Net weight (2.2 lb = 1 kg)
  • 0.175 kg / 0 lb 6.2 oz (0.385 lb)
  • Author
  • Model page created by Serioja Tatu. See "Data change" for further contributors.
