POLO radio AM/FM R-688
Unknown - CUSTOM BUILT: Italy
- Country
- Italy
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Italy
- Year
- 2000 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283413
Polo R-688 immagine frontale.
Polo R-688 immagine frontale piatta.
Polo R-688 immagine interno con circuito.

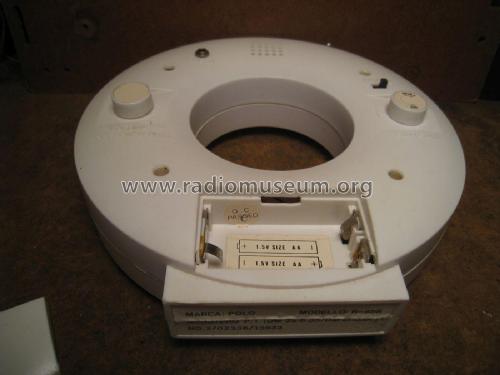

Polo R-688 targhetta identificativa.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / AA: 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.2 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: POLO radio AM/FM R-688 - Unknown - CUSTOM BUILT: Italy
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 175 x 175 x 32 mm / 6.9 x 6.9 x 1.3 inch
- Notes
-
POLO radio AM/FM; antenna esterna; uscita cuffia; commutatore AM/FM. Made in Italy
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
