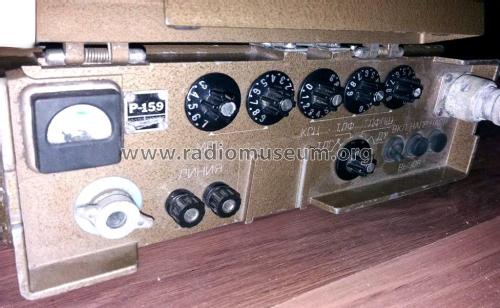

Portable Transceiver R-159 {Р-159}

Unknown - CUSTOM BUILT: Soviet Union

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Military Transceiver (TRX)
  • Radiomuseum.org ID
  • 288168

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Batteries / addl. power jack / 12,4 / 12 / 24 Volt
  • Loudspeaker
  • - only for Earphone!
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Portable Transceiver R-159 {Р-159} - Unknown - CUSTOM BUILT: Soviet
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 305 x 180 x 395 mm / 12 x 7.1 x 15.6 inch
  • Notes

  • Versions are noted with external power connector for 12V and 24V DC. Frequency range 30.000-75.995MHz in 1kHz steps. Channel spacing 25kHz. Modulation FM R/T and MCW. Powered by rechargeable 12.4 V battery fitted in lower compartment of the set. RF output approximately 12 watts. Manpack antenna was a 1.6M Kulikoff type. Fully transistorised.

  • Net weight (2.2 lb = 1 kg)
  • 14.5 kg / 31 lb 15 oz (31.938 lb)
