• Country
• Italy

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Italy

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283754

• Number of Transistors
• 6

• Semiconductors
• BF233 BF233 AC191 BC208 AC141 AC142

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

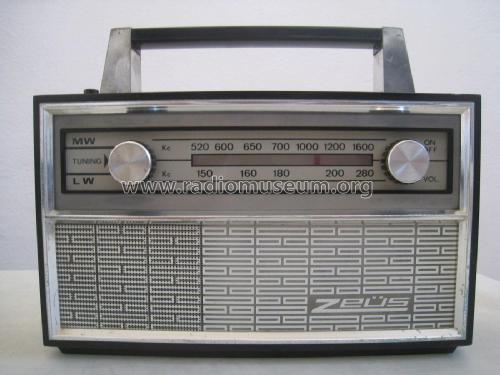

• Model: Zeüs MW/LW - Unknown - CUSTOM BUILT: Italy

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 155 x 65 mm / 9.8 x 6.1 x 2.6 inch

• Notes

• Maniglia di trasporto; commutatore MW/LW.

• Net weight (2.2 lb = 1 kg)
• 0.750 kg / 1 lb 10.4 oz (1.652 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
