• Country
• Worldwide

• Manufacturer / Brand
• Unknown to us - Worldwide

• Year
• 1987 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 254578

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• unknown_tr unknown_tr MK484 unknown_Display

• Main principle
• TRF without regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / UCC392: 1 x 1.5 & UCC357: 1 x 1.55 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

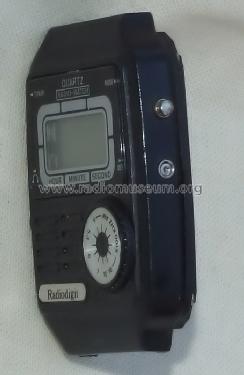

• Model: Radiodigit - Unknown to us - Worldwide

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Notes

• Wrist Watch Radio.
  AM Broadcasting Radio & LCD Quartz Digital Wristwatch.



• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
