- Country
- United States of America (USA)
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: USA
- Year
- 1951–1953 ?
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 140938
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Powered by external power supply or a main unit. / 6.3 & 84 & 85 Volt
- Loudspeaker
- - only for Earphone!
- Material
- Metal case
- from Radiomuseum.org
- Model: RR-6 - Unknown - CUSTOM BUILT: USA
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 5 x 2.25 x 6.75 inch / 127 x 57 x 171 mm
- Notes

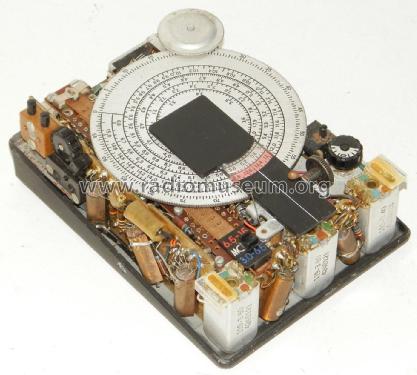

- RR-6, Receiver
part of RS-6, a so called clandestine / agent or spy radio, as well as an emergency TX/RX set for aeroplanes.
The complete radio set RS-6 comes in four units:
RA-6 filter box,
RP-6 power supply or GN-58 or SSP-11 hand generator,
RT-6 transmitter,
RR-6 receiver: Coverage: 3 - 6.5 MHz & 6.5 - 15 MHz,
dial window, fine tuning, BFO, 500 KHz calibrator, VFO or Xtal operation.
