• Country
• United States of America (USA)

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: USA

• Year
• 1951 ?

• Category
• Commercial Transmitter (TX not Transceiver)

• Radiomuseum.org ID
• 141130

• Number of Tubes
• 2

• Valves / Tubes
• 6AG5 2E26

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / 6.3 & 400 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: RT-6 - Unknown - CUSTOM BUILT: USA

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 5 x 2 x 6.75 inch / 127 x 51 x 171 mm

• Notes
• RT-6, Transmitter.
  Coverage: 3–7 MHz and 7–16.5 MHz; P_out: 6–10 W; CW, Xtal operated, neon lamp osc. tuning indicator, neon lamp sidetone osc., neon lamp final amp. tuning ind., antenna output ind. lamp, built-in key, ext. key jack.

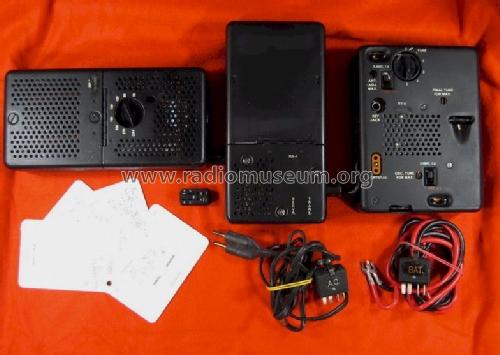

  RS-6, a so called clandestine-agent or spy radio set as well as an emergency TX/RX set for aeroplanes, the complete radio set RS-6 is in four units:
  RA-6 filter box, RP-6 power supply or GN-58 or SSP-11 hand generator, RT-6 transmitter.
