• Country
• People's Republic of China

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: China

• Year
• 1988 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179689

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.4 cm = 2.1 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

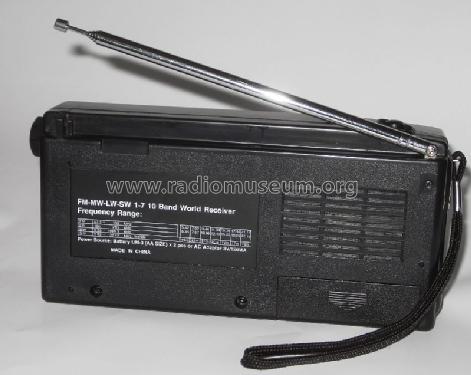

• Model: S&S 10 Band World Receiver - Unknown - CUSTOM BUILT: China

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 83 x 40 mm / 6.9 x 3.3 x 1.6 inch

• Notes

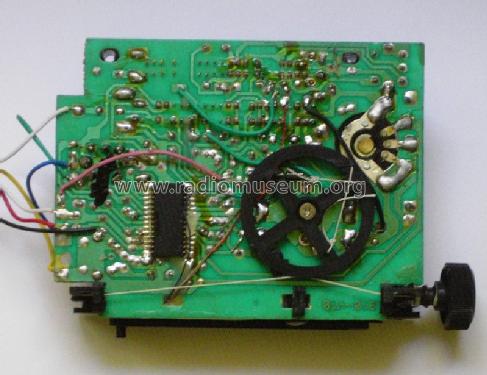

• 7 KW-Baender durch Verwendung des SONY IC CXA1019M (724K22V S9018 G-711). Die Filter tragen die Bezeichnung GOOD PLAN, die Elkos KONGFAI und BJP. Ferritantenne 1: 40 mm flach 8 x 3 mm, Ferritantenne 2: 49 mm Rund 8 mm mit 2 Abflachungen; Teleskopantenne: 61 cm. Die Platinenbezeichnung: 910-V10, Batterien 2 x LR6.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Author
• Model page created by Alfred Przybilla. See "Data change" for further contributors.
