Samer giradischi 33/78 giri

Unknown - CUSTOM BUILT: Italy

Data
Forum
Pictures
Collections

  • Year
  • 1950 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 306231

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Samer giradischi 33/78 giri - Unknown - CUSTOM BUILT: Italy
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 445 x 150 x 310 mm / 17.5 x 5.9 x 12.2 inch
  • Notes

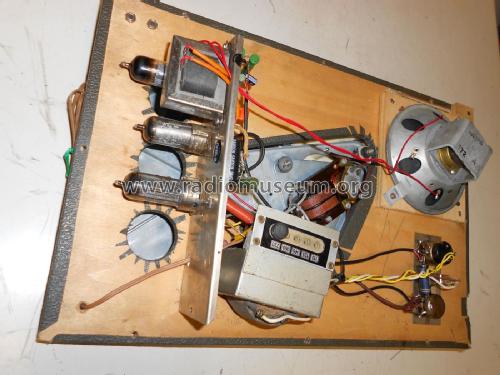

  • controllo volume/tono - spia accensione - 2 velocità 33/78 giri - maniglia di trasporto - rivestimento in similpelle. Plato Philips 2978D

    Made in Italy.

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
