• Country
• Canada

• Manufacturer / Brand
• JIL (J.I.L.) Canada Ltd. (Jutan International Ltd.); Toronto

• Year
• 1981–1986

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 236919

• • alternative name: Jutan Importers Limited

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 455/10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit. / 13,8 & 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

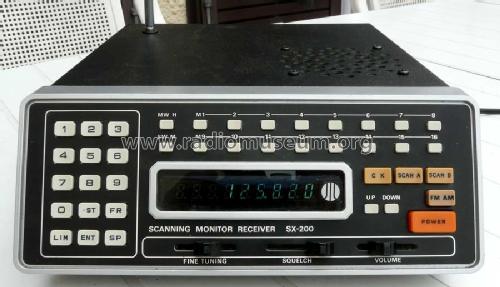

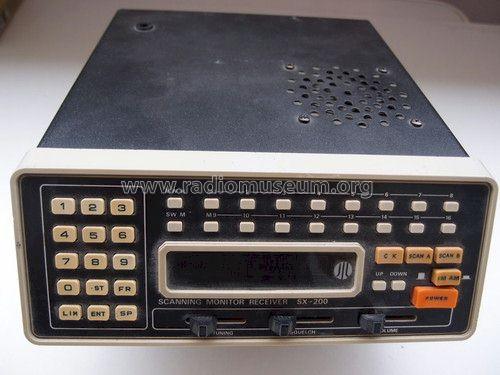

• Model: Scanning Monitor Receiver SX-200 - JIL J.I.L. Canada Ltd. Jutan

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 200 x 90 x 260 mm / 7.9 x 3.5 x 10.2 inch

• Notes

• Scanning Monitor Receiver SX-200

  • VHF  26 - 57,995 MHz  (Low); 5kHz
  • VHF  58 - 88 MHz; 12,5 kHz
  • VHF  108 -  180 MHz  (High); 5 kHz
  • UHF  380 - 514 MHz; 12,5 kHz
  • AM/FM
  • Super heterodyne with double conversion, PLL circuit.
  • Digital display of frequency and time.
  • Adjustable squelch.
  • 16 memory channels (saved by means of 2 AA batteries).
  • Telescopic or external antenna.
  • Selecting frequency: directly via keyboard or with up-down buttons.
  • Connections for HPS and record.

  Made by Nissan Denshi in Japan.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 3,590.00 FRF

• Author
• Model page created by a member from A. See "Data change" for further contributors.
