Selimco (Mangiadischi) Super Mark
Unknown - CUSTOM BUILT: Italy
- Country
- Italy
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Italy
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 302342
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

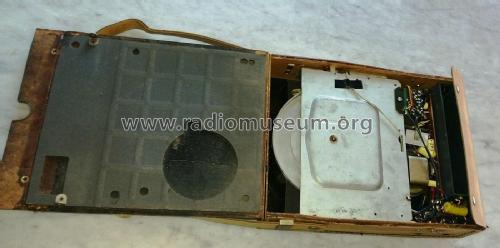

- Model: Selimco Super Mark - Unknown - CUSTOM BUILT: Italy
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 80 x 280 mm / 8.3 x 3.1 x 11 inch
- Notes
-

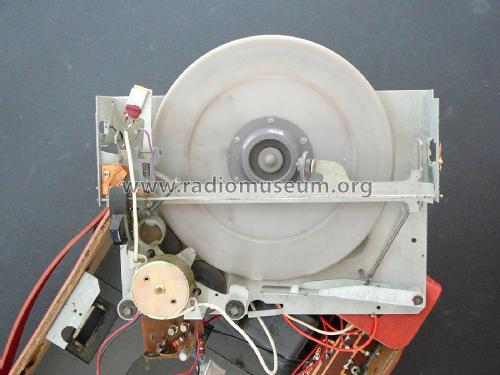

"Mangiadischi" a 2 velocità, 33 e 45 giri.
Dei 7 transistor 2 sono sul circuito di variazione della velocità del motore.
Regolatore di tono.
- Net weight (2.2 lb = 1 kg)
- 1.850 kg / 4 lb 1.2 oz (4.075 lb)
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
