• Country
• Italy

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Italy

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350521

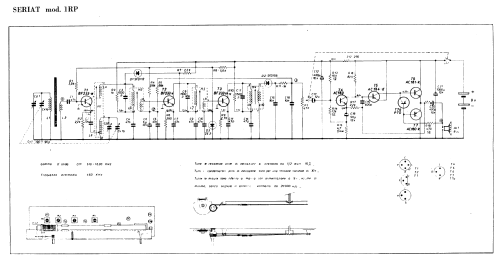

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BF233 BF233 BF233 AC183 AC184 AC181 AC180 SFD112 PTO

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Seriat 1 RP - Unknown - CUSTOM BUILT: Italy

• Notes

• Piccola radio con solo onde Medie e funzionamento solo a batterie.

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
