Sharleen 2133
Unknown - CUSTOM BUILT: Hong Kong (HK)
- Country
- Hong Kong
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Hong Kong (HK)
- Year
- 1974 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255970

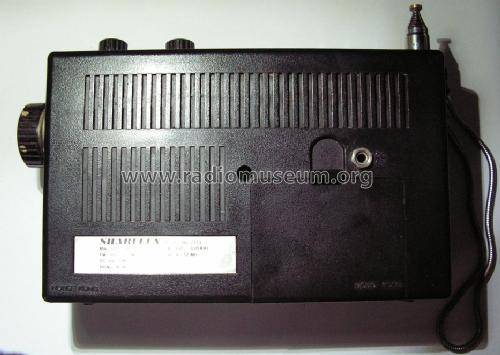

View with batter compartment closed
View with batter compartment opened
Top view showing controls
View with back removed
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sharleen 2133 - Unknown - CUSTOM BUILT: Hong
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 185 x 130 x 50 mm / 7.3 x 5.1 x 2 inch
- Notes
-
Loudspeaker is marked "PRETTY SOUND" and is rated 8 ohm 1 W also marked "KOREA". Radio case is marked "Hong Kong".
- Author
- Model page created by Leighton Man. See "Data change" for further contributors.
