• Country
• Soviet Union

• Manufacturer / Brand
• MILITARY USSR (different makers for same model)

• Year
• 1970 ?

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 140212

• Number of Tubes
• 17

• Valves / Tubes
• 1Ж24Б 1Ж29Б 1П24Б

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 1500/480 kHz; 2 AF stage(s); none

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• - For headphones or amp.

• Material

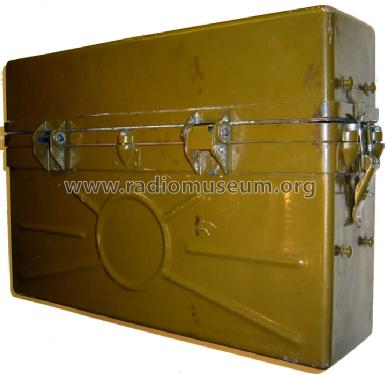

• Metal case

• from Radiomuseum.org
• Model: "Shmel" R-354 {Р-354} - MILITARY USSR different makers

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 410 x 280 x 110 mm / 16.1 x 11 x 4.3 inch

• Notes

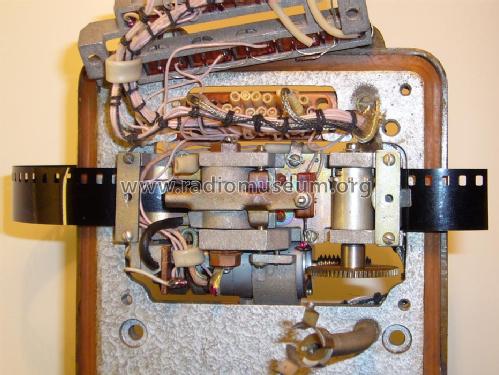

• RX:2000-15500kHz TX:2500-15000kHz Frequenzeinstellung jeweils über Projektionsskalen.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Technische Beschreibung IW1.201.024 TO/S

• Author
• Model page created by Gregor Lasser. See "Data change" for further contributors.
