Shokai NR-25F1 (Japan 508)

Sakata Shokai Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 315756

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Shokai NR-25F1 - Sakata Shokai Co., Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 298 x 210 x 123 mm / 11.7 x 8.3 x 4.8 inch
  • Notes

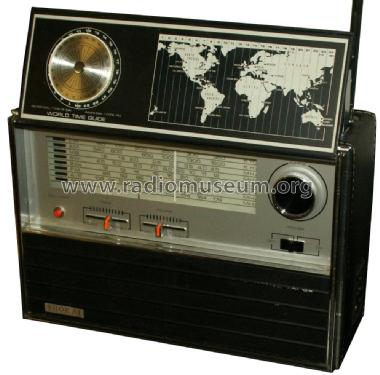

  • Shokai NR-25F1: Portable multi-band radio covering LW, MW, MB (Marine Band), 2 x SW (1.6 - 24 MHz), FM, Air Band / PSB (108 - 174 MHz), two telescopic antennas.

    Made in Japan 508

  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
