• Country
• Soviet Union

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Soviet Union

• Year
• 1981

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 268284

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

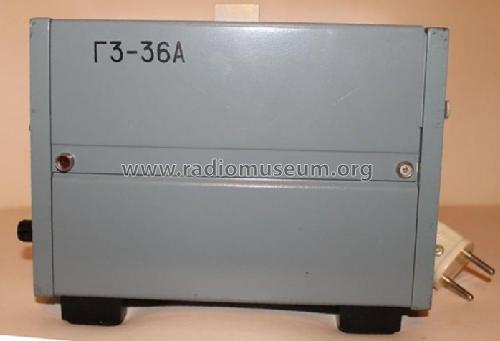

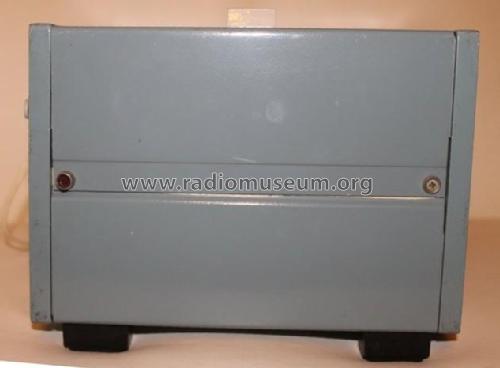

• Model: Signal Generator - Генератор Низкочастотный G3-36A - Г3-36А - Unknown - CUSTOM BUILT: Soviet

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 260 x 230 x 165 mm / 10.2 x 9.1 x 6.5 inch

• Notes

• 20 Hz - 200 kHz in 4 ranges. 600 ohms out. Sine and square out.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
