6 Transistor R610

Singer Company, The; La Vergne, TN

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Singer Company, The; La Vergne, TN

Year
1960 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
236119

Schematics

6 Transistor R610; Singer Company, The; (ID = 1456871) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

6 Transistor R610; Singer Company, The; (ID = 1456872) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

6 Transistor R610; Singer Company, The; (ID = 1456873) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

6 Transistor R610; Singer Company, The; (ID = 1456874) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

6 Transistor R610; Singer Company, The; (ID = 1456876) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

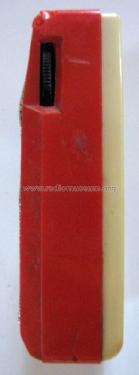

6 Transistor R610; Singer Company, The; (ID = 1456877) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

6 Transistor R610; Singer Company, The; (ID = 1456879) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

6 Transistor R610; Singer Company, The; (ID = 1456880) Radio — Singer Company, The; 6 Transistor R610 (2)
By Courtesy Of EBAY User: brownscountrystore

6 Transistor R610; Singer Company, The; (ID = 1851282) Radio — Singer Company, The; 6 Transistor R610 (2)

6 Transistor R610; Singer Company, The; (ID = 1851283) Radio — Singer Company, The; 6 Transistor R610 (2)

6 Transistor R610; Singer Company, The; (ID = 1851284) Radio — Singer Company, The; 6 Transistor R610 (2)

6 Transistor R610; Singer Company, The; (ID = 1851286) Radio — Singer Company, The; 6 Transistor R610 (2)

6 Transistor R610; Singer Company, The; (ID = 1851287) Radio — Singer Company, The; 6 Transistor R610 (2)

6 Transistor R610; Singer Company, The; (ID = 1851288) Radio — Singer Company, The; 6 Transistor R610 (2)

Technical Specifications

Number of Transistors
6

Semiconductors
2SA52 2SA49 2SA53 2SB54 2SB56 2SB56 1N60

Main principle
Superheterodyne (common)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / AA: 2 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 6 Transistor R610 - Singer Company, The; La Vergne

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
2.5 x 3.9 x 1.25 inch / 64 x 99 x 32 mm

Notes
Singer AM Pocket Radio Model 6 Transistor.
Leather Case, Earphone Jack.
Made in Japan.

Author
Model page created by Franz Scharner. See "Data change" for further contributors.
