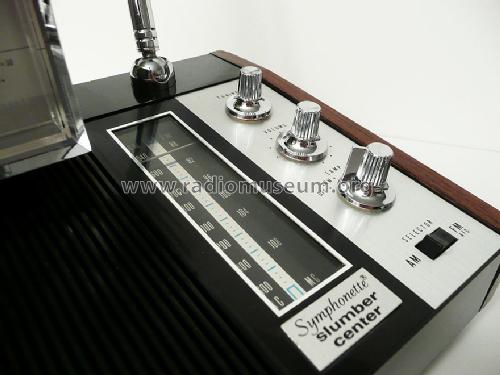

Slumber Center LCR-500

Longines Symphonette; (where?)

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 136286

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Slumber Center LCR-500 - Longines Symphonette; where?
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 230 x 280 x 170 mm / 9.1 x 11 x 6.7 inch
  • Notes
  • Symphonette LCR-500 slumber center;
    AFC, lamp fixed on a telescopic adjustable arm, lamp with 3 step dimmer, timer/watch and alarm clock, 6 W power consumption, 20 W with lamp high, made in Japan. The clockwork runs on 60 Hz AC. Not suitable for 50 Hz mains(eg. for Europe).
  • Net weight (2.2 lb = 1 kg)
  • 1.750 kg / 3 lb 13.7 oz (3.855 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
