Star Fire AM-FM AFC Nine Transistor TFM-99
Unknown - CUSTOM BUILT: Japan
- Country
- Japan
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Japan
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293949
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 / 10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.15 W (0.25 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Star Fire AM-FM AFC Nine Transistor TFM-99 - Unknown - CUSTOM BUILT: Japan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 157 x 90 x 50 mm / 6.2 x 3.5 x 2 inch
- Notes
-

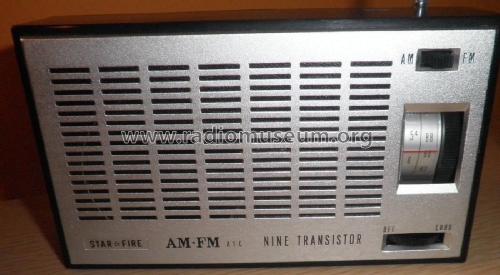

StarFire AM-FM AFC Nine Transistor Radio Model TFM-99.
Range: AM 88 - 108 MHz, AM 540 - 1600 kHz
DX-Local Switch
Earphone Jack
Telesopic Antenna
Wrist Strap
Made in Japan
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
