• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1962–1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 308186

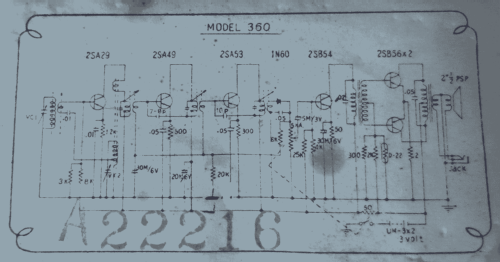

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA29 2SA49 2SA53 2SB54 2SB56 2SB56 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Starlet Six Transistor 360 - Unknown - CUSTOM BUILT: Japan

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 100 x 28 mm / 2.6 x 3.9 x 1.1 inch

• Notes

• See also the similar model Wilco 6-Transistor 360 and the USHA 6 Transistor 360

• Net weight (2.2 lb = 1 kg)
• 0.260 kg / 0 lb 9.2 oz (0.573 lb)

• Author
• Model page created by Jose Mesquita. See "Data change" for further contributors.
