• Country
• Soviet Union

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Soviet Union

• Year
• 1970 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 183057

• Number of Tubes
• 8

• Valves / Tubes
• 6Ж1П-ЕВ 6Ж10П 6Ж1П-ЕВ 6Ж9П-Е 6Ж1П-ЕВ 6Ж1П-ЕВ 6Ж1П-ЕВ 6Ж9П-Е

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

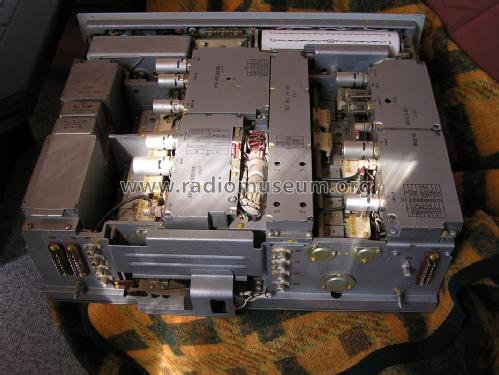

• Model: Štorm {Шторм} 3 - Unknown - CUSTOM BUILT: Soviet

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 605 x 650 x 580 mm / 23.8 x 25.6 x 22.8 inch

• Notes
• Kommerzieller Seefunkempfänger
  Frequenzbereich: 12 kHz - 30 MHz in 12 Bereichen, lückenlos
  Betriebsarten: A1, A2, A3, A3H, A3A, A3J, A4, F1;
  erste ZF: 1222 kHz, zweite ZF: 128 kHz;
  4 Einschübe: Empfänger, Frequnzstabilisator, RTTY-Demodulator, Netzteil.;
  Röhren vorhanden, Anzahl und Type nicht bekannt.

• Net weight (2.2 lb = 1 kg)
• 150 kg / 330 lb 6.3 oz (330.396 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heiko Harry Hacker. See "Data change" for further contributors.

• Other Models

• Here you find 172 models, 158 with images and 37 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Unknown - CUSTOM BUILT: Soviet Union
