• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283755

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

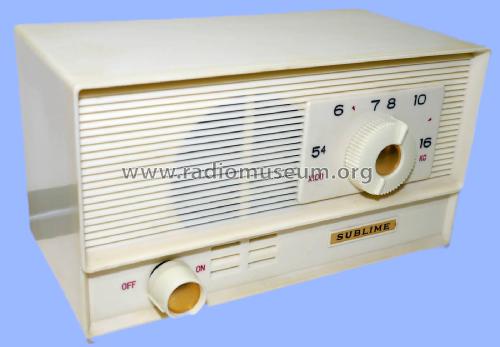

• Model: Sublime - Unknown - CUSTOM BUILT: Japan

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 200 x 119 x 110 mm / 7.9 x 4.7 x 4.3 inch

• Notes

• The relationship to the U.S. Sublime - Ramson Trading Co. Inc. is currently not known.

  The diamond "H" logo at the schematic could be a hint for the real manufacturer Hiraoka.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by David Erali. See "Data change" for further contributors.
