Superheterodyne construction kit
Unknown - CUSTOM BUILT: GB
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: GB
- Year
- 1963 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 271398
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: Superheterodyne construction kit - Unknown - CUSTOM BUILT: GB
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-

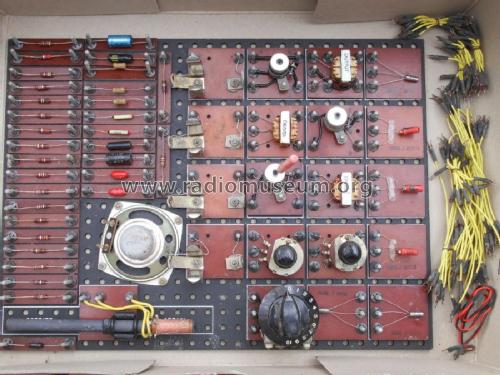

Construction kit to build a transistorised superheterodyne receiver with push-pull output stage. Consists of all necessary parts like ferrite rod aerial, IF transformers, RF and AF transistors, resistors, capacitors, loudspeaker etc.
Parts are mounted at small phenolic boards, connections to be made by wire clips.
