• Country
• Italy

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Italy

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 299783

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 AC184 AC184 OA79

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Superphonic Ch= Staar - Unknown - CUSTOM BUILT: Italy

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 180 x 90 mm / 9.4 x 7.1 x 3.5 inch

• Notes

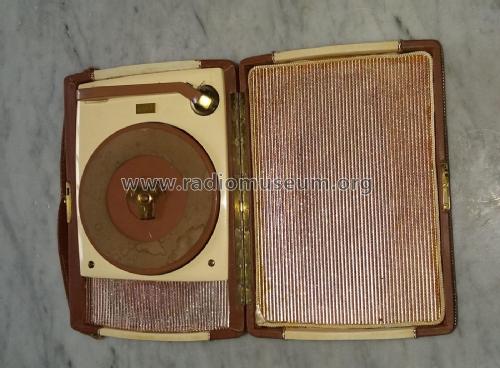

• Record player chassis made by G. Staar (or in license).

• Net weight (2.2 lb = 1 kg)
• 1.850 kg / 4 lb 1.2 oz (4.075 lb)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
