• Country
• Italy

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Italy

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279498

• Number of Transistors
• 7

• Semiconductors
• SFT307 SFT307 SFT353 SFT353 SFT325 SFT325 SFT320

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

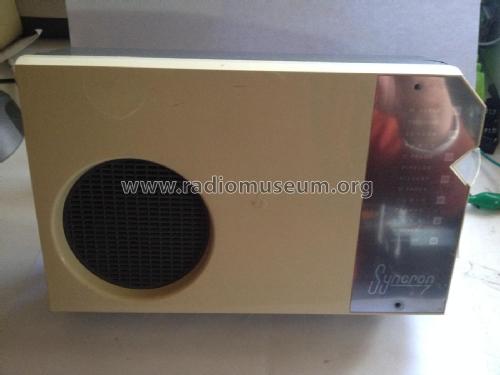

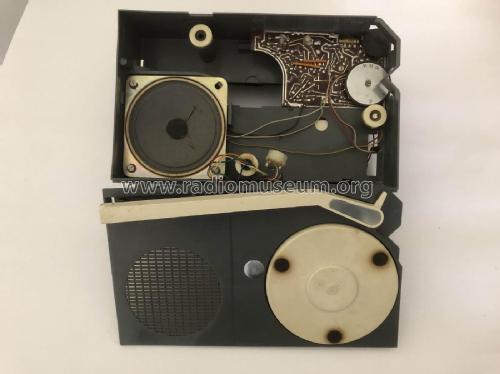

• Model: Syncron 7 - Unknown - CUSTOM BUILT: Italy

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 230 x 140 x 75 mm / 9.1 x 5.5 x 3 inch

• Notes

• Sintonizzatore onde medie giradischi 45 giri.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Author
• Model page created by Ivano Paolini. See "Data change" for further contributors.
