• Country
• Soviet Union

• Manufacturer / Brand
• Moscow TEMP Radio Works/Plant (ex-Moselektrik); Moskow

• Year
• 1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 215414

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6Ж1П 6Ж1П 6Ф3П 6Ж1П 6Ж1П 6Ж1П 6Ж5П 6П15П 6Ф1П 6Н2П 6Ф3П 6Н1П 6П31С 6Д14П 3Ц18П 6Н14П 6Ф1П 47ЛК2Б

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 237 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Темп - 6М Temp - 6M - Moscow TEMP Radio Works/Plant

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 575 x 460 x 340 mm / 22.6 x 18.1 x 13.4 inch

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Literature/Schematics (1)

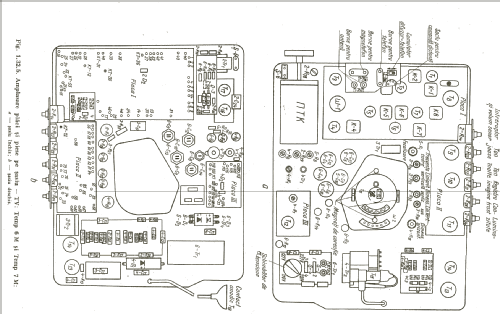

• Scheme de Televizoare Magnetofoane, Picupuri Ed.2 1976

• Author
• Model page created by Adalbert Blenessy. See "Data change" for further contributors.
