• Country
• Japan

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Japan

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157419

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 cm = 2.1 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

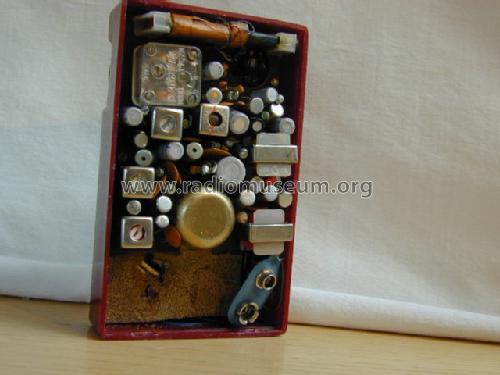

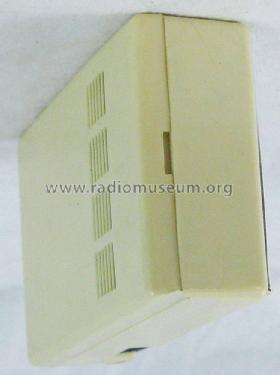

• Model: Tesasonic 14 Transistor TC-144 - Unknown - CUSTOM BUILT: Japan

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 108 x 30 mm / 2.6 x 4.3 x 1.2 inch

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
