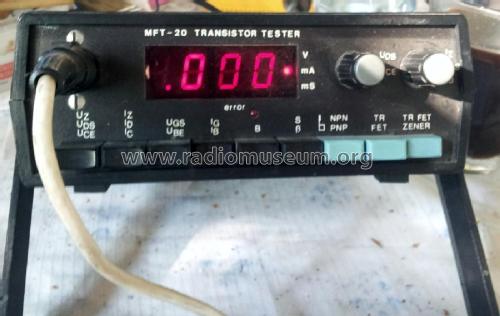

Transistor Tester MFT-20

• Country
• Hungary

• Manufacturer / Brand
• Minipool IKSZ; Budaörs

• Year
• 1988 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 331751

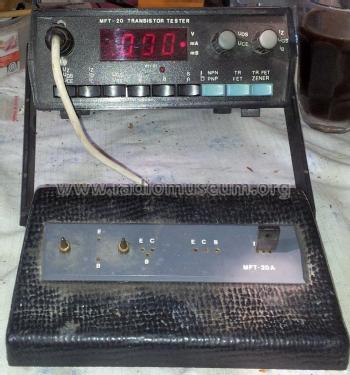

• Picture

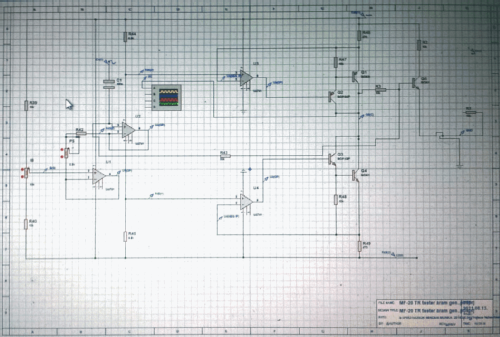

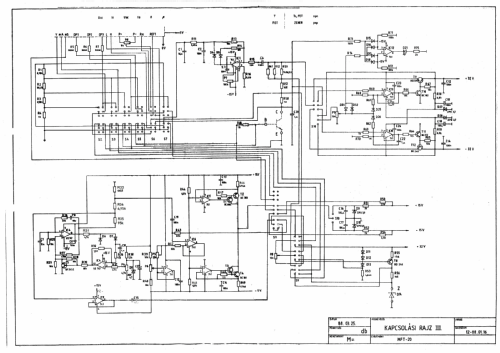

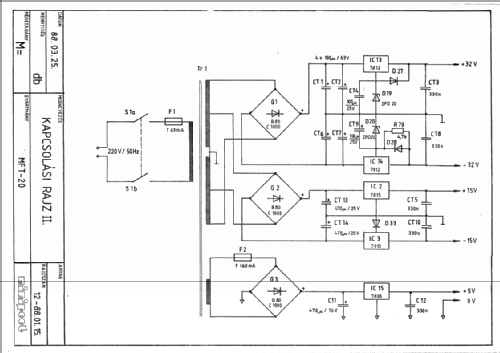

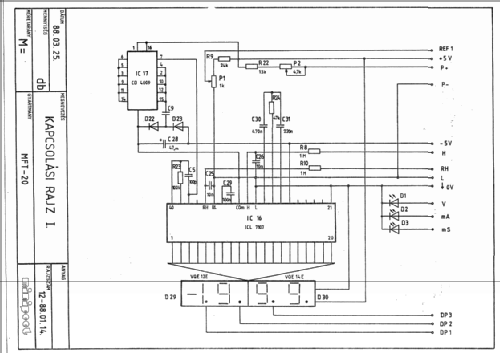

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

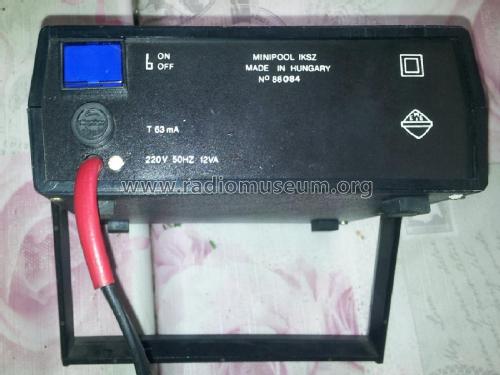

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transistor Tester MFT-20 - Minipool IKSZ; Budaörs

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 190 x 190 x 60 mm / 7.5 x 7.5 x 2.4 inch

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Mentioned in

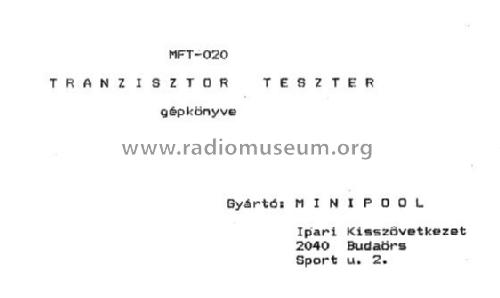

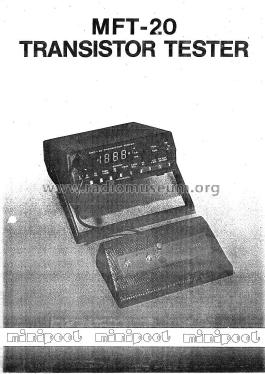

• - - Manufacturers Literature

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
