УС-4С Универсальный супергетеродин US-4S General Purpose Superhet
Unknown - CUSTOM BUILT: Soviet Union
- Country
- Soviet Union
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Soviet Union
- Year
- 1943
- Category
- Military Receiver
- Radiomuseum.org ID
- 196962
- Number of Tubes
- 8
- Main principle
- Superhet, IF regeneration
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / 2,4 / 60 Volt
- Loudspeaker
- - only for Earphone!
- Material
- Metal case
- from Radiomuseum.org
- Model: УС-4С Универсальный супергетеродин US-4S General Purpose Superhet - Unknown - CUSTOM BUILT: Soviet
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 240 x 220 x 185 mm / 9.4 x 8.7 x 7.3 inch
- Notes
-
Battery supply AM/CW military receiver. Used by Soviet Army in WW2 and later.

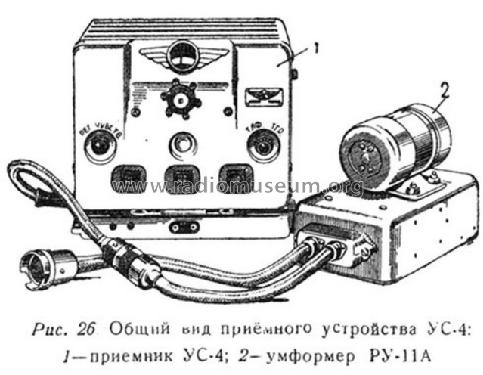

Coverage SW 2,5 - 13,5 MHz in three ranges.Information from member Valery Gromov: "There is an Air Force model US-4, using metal tubes with 6.3V filaments, and the US-4S infantry model, using glass tubes with 2V filaments. Both US-4 and US-4S were manufactured at Novosibirk Radio Works No. 590 (civil name "Novosibirsky Electrosignal") starting from 1943. It is unclear why there was already an US-4 designation for the HRO copycat in 1940 that was manufactured in Riga for the Red Army but was soon taken over by the Germans - and can now be found with the Wehrmacht Reichsadler."
Quite a different model is the later US PR-4.
- Author
- Model page created by Zenonas Langaitis. See "Data change" for further contributors.
