• Country
• Soviet Union

• Manufacturer / Brand
• Ribinsk devices factory, Jaroslavl district

• Year
• 1947–1958

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 256757

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

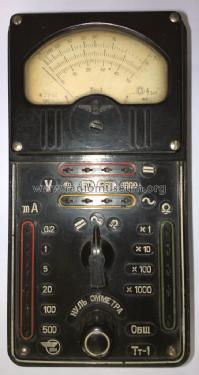

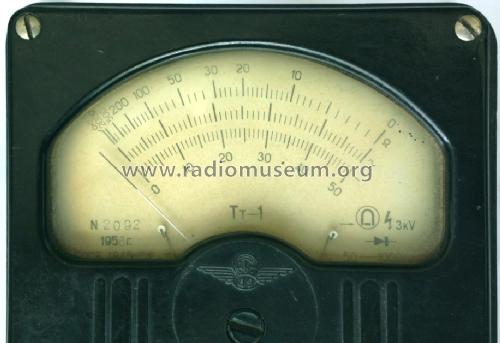

• Model: V-A-Ohm Meter - Тестер Tt-1 {Тт-1} - Ribinsk devices factory,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 115 x 216 x 76 mm / 4.5 x 8.5 x 3 inch

• Notes

• AC/DC: 0,2-500 mA; 10-1000 V; and 500-50 kOhm

  1947 produced from soviet airforce, later Ribinsk devices factory.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
