• Country
• Hong Kong

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Hong Kong (HK)

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213625

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

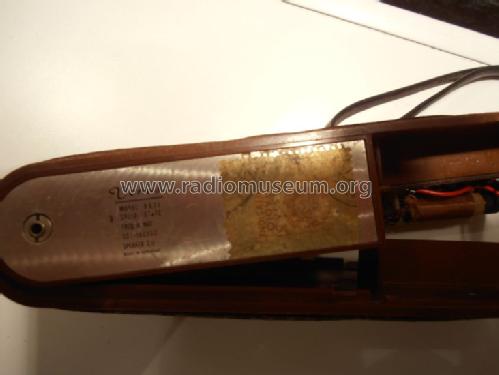

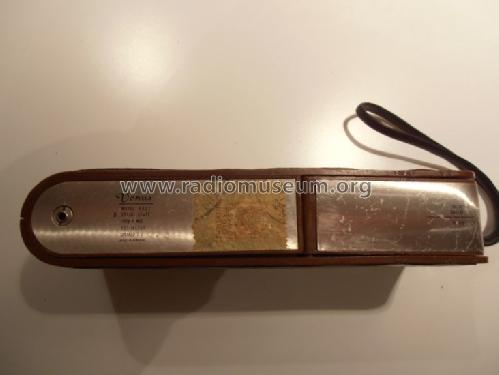

• Model: Venus V 801 - Unknown - CUSTOM BUILT: Hong

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 165 x 65 x 35 mm / 6.5 x 2.6 x 1.4 inch

• Notes
• Venus V 801, printed circuit board marked Vanda V-801;
  Made in Hong Kong and distributed/sold in Italy.
  Made in Hong Kong e commercializzata in Italia.

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
