• Country
• Great Britain (UK)

• Manufacturer / Brand
• MILITARY U.K. (different makers for same model)

• Year
• 1942 ??

• Category
• Military Equipment (not Re, Tr or RXT)

• Radiomuseum.org ID
• 93593

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• VW48 VW36

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

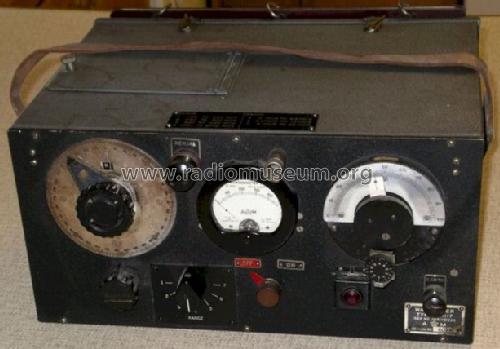

• Model: Wavemeter W-1117 - MILITARY U.K. different makers

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

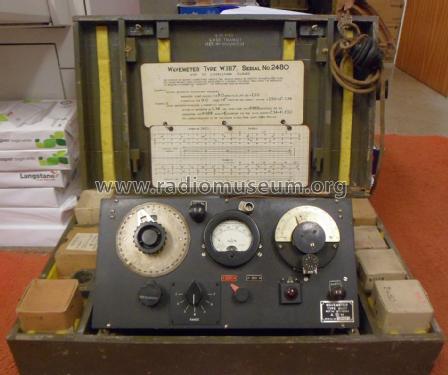

• British Wavemeter W-1117.
  125 kHz to 20 MHz, portable unit for calibration of Aeroplane Receivers/Transmitters.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
