- Country
- Spain
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Spain
- Year
- 1946 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 348726
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Wiking - Unknown - CUSTOM BUILT: Spain
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 485 x 310 x 310 mm / 19.1 x 12.2 x 12.2 inch
- Notes
-
Similar a los modelos de Clarion RG-155-C, RG-155-D y Crucero de los Mares.

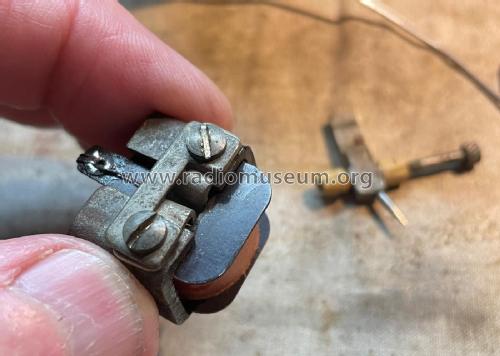

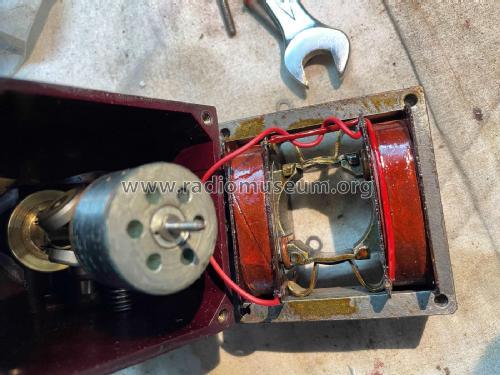

El tocadiscos, manual con paro automático, es de 78RPM con ajuste manual de la velocidad y fonocaptor electrodinámico.
- Net weight (2.2 lb = 1 kg)
- 19 kg / 41 lb 13.6 oz (41.85 lb)
- Author
- Model page created by Ernest Chaure-Moix. See "Data change" for further contributors.
