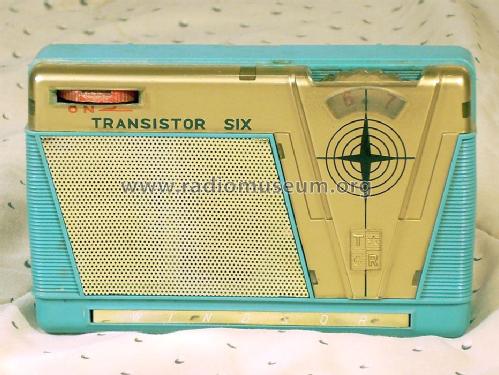

Windsor Transistor Six 6T-220

Windsor Industries, Inc.; Brooklyn, NY

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 88712

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Windsor Transistor Six 6T-220 - Windsor Industries, Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 115 x 70 x 35 mm / 4.5 x 2.8 x 1.4 inch
  • Notes

  • Windsor Six Transistor 6T-220;
    Uses Toshiba transistors. Has a gold coloured reverse painted dial area.

    Similar to the models listed under Crestline Transistor Six 6T-220.

  • Net weight (2.2 lb = 1 kg)
  • 0.2 kg / 0 lb 7 oz (0.441 lb)
