• Country
• Hong Kong

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Hong Kong (HK)

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 329730

• Number of Transistors
• 7

• Semiconductors
• 2SA29 2SA29 2SA29 unknown_tr 2SB422 2SB423 2SB423

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

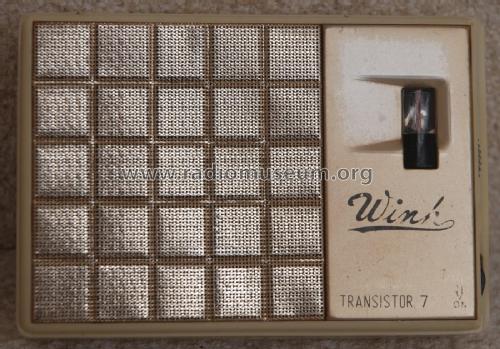

• Model: Wink Transistor 7 A-700 - Unknown - CUSTOM BUILT: Hong

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 117 x 80 x 34 mm / 4.6 x 3.1 x 1.3 inch

• Net weight (2.2 lb = 1 kg)
• 0.210 kg / 0 lb 7.4 oz (0.463 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
