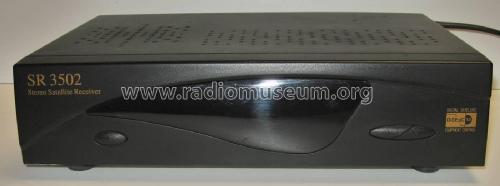

Stereo Satellite Receiver SR 3502
Unknown - CUSTOM BUILT: China
- Country
- People's Republic of China
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: China
- Year
- 2003 ?
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 310256
- Number of Transistors
- Semiconductors present.
- Semiconductors
- SL1461 SP5055 NE555 CD4052 BU2611 BA403 BA403 CXA1733 ST24C16 EM78P447S SSA56102 SSA56102 MC7805CT LM317
- Main principle
- PLL, Phase-locked loop
- Wave bands
- SAT-IF
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo Satellite Receiver SR 3502 - Unknown - CUSTOM BUILT: China
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 252 x 66 x 175 mm / 9.9 x 2.6 x 6.9 inch
- Notes
-
Satellitenreceiver zum Empfang analoger Radio- und Fernsehkanäle. Anschlüsse: LNB (F-Type), VCR-SCART, TVR-SCART, Audio out L/R (RCA), ANT IN (IEC), TO TV (IEC).
DiSEqC 1.0-Steuerung, eingebauter UHF-Modulator mit einstellbarem Kanal und Testsignalgenerator, Typ: WITTIS RF-S3605EUW.
Leistungsaufnahme: 30 W.Made in China.
Halbleiterliste nicht vollständig.
Ähnliches Modell (ohne UHF-Modulator): Stereo Satellite Receiver SR 3102
- Net weight (2.2 lb = 1 kg)
- 1.433 kg / 3 lb 2.5 oz (3.156 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
