Sunny Multiband Radio Receiver KK-9

Unknown - CUSTOM BUILT: China

Data
Forum
Pictures
Collections

  • Year
  • 2005 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 294246

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1,5 / 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

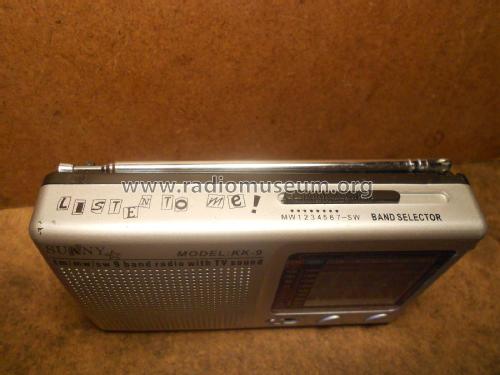

  • Model: Sunny Multiband Radio Receiver KK-9 - Unknown - CUSTOM BUILT: China
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 130 x 80 x 30 mm / 5.1 x 3.1 x 1.2 inch
  • Notes

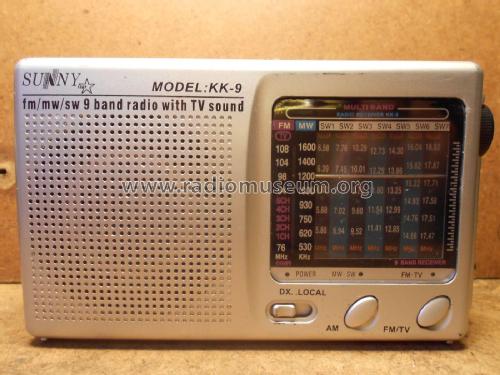

  • SUNNY FM/MW/SW 9 BAND RADIO WITH TV SOUND mod. KK-9

    - controllo volume
    - antenna telescopica esterna
    - uscita per cuffia
    - commutatore Dx-Local
    - maniglia di trasporto
    - presa per alimetazione esterna 3 V
    - frequenza FM: 76/108 MHz
    - TV: 1/5 CH
    - MW: 526/1606 kHz
    - SW (1-7): 5.90/18.30 MHz.

    Made in China.

    See also: Kaide KK-9, Kaipeng KK-9, Kalade KK-9 , and Durabrand KK-9.

  • Net weight (2.2 lb = 1 kg)
  • 0.280 kg / 0 lb 9.9 oz (0.617 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
