• Country
• People's Republic of China

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: China

• Year
• 1989 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 306384

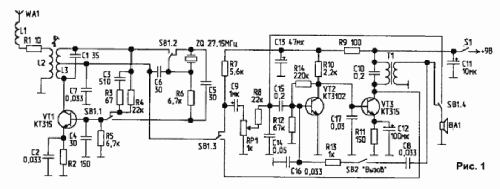

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• КТ315 КТ3102 КТ315

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Dry Batteries / 6LR61: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

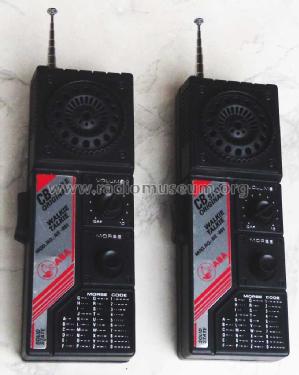

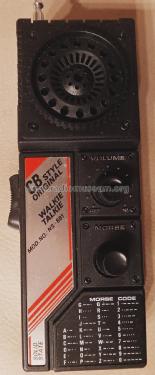

• Model: Walkie Talkie NS881 - Unknown - CUSTOM BUILT: China

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 60 x 175 x 40 mm / 2.4 x 6.9 x 1.6 inch

• Notes

• Einkanal CB-Handfunkgerät mit 59 cm lannger Teleskopantenne. Sonderfunktion Morsetaste.

  Serienmäßig mit dem Sende- / Empfangskanal Nr. 14 bestückt (27,125 MHz).

• Net weight (2.2 lb = 1 kg)
• 0.205 kg / 0 lb 7.2 oz (0.452 lb)

• Author
• Model page created by Holger Struthoff. See "Data change" for further contributors.
