Morse Code Trainer Unit TMG-1
Hiradótechnikai Vállalat (HTV); Budapest
- Country
- Hungary
- Manufacturer / Brand
- Hiradótechnikai Vállalat (HTV); Budapest
- Year
- 1983 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 185220
- Number of Transistors
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 3 x 1,2 or 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.05 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Morse Code Trainer Unit TMG-1 - Hiradótechnikai Vállalat HTV;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 120 x 196 x 268 mm / 4.7 x 7.7 x 10.6 inch
- Notes

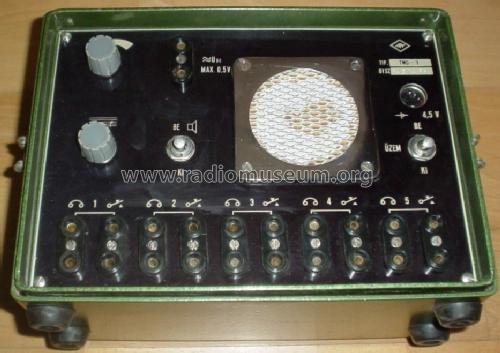

- TMG-1 Morse Code Trainer Unit;
For up to 5 students, terminals for each key and headphones, suitable transport case with accessories known, AC & OC transistor types, most probably made in Hungary because of used parts and labeling.
- Net weight (2.2 lb = 1 kg)
- 10.3 kg / 22 lb 11 oz (22.687 lb)
