• Country
• Belgium

• Manufacturer / Brand
• UNR (U.N.R.), Union Nationale de Radio; Poperinge

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296266

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EBF2 EBF2 EL3N EM4 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

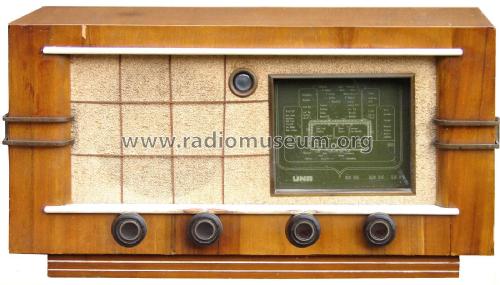

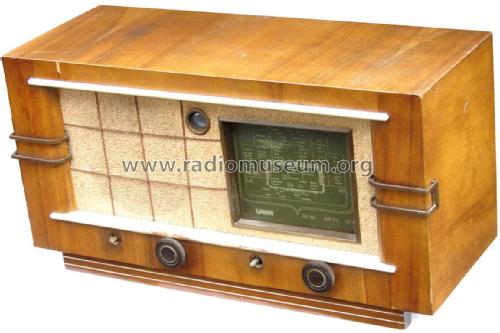

• Model: Inconnu - Unknown 1 - UNR U.N.R., Union Nationale de

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 340 x 250 mm / 25.2 x 13.4 x 9.8 inch

• Notes

• Tube complement uncertain.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by Alex Baerts. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
